Rear Winch System Pick-Up Between with Synthetic Rope

Space-saving rear winch system for your pickup

The horntools rear winch system Pick-Up Between is the ideal solution if you want to integrate your winch into the load bed of your pickup in a space-saving and permanent way.

The rear winch carrier fits compactly into the load bed and can also be used if a drawer, hardtop, or loading space cover is installed. If suitable rails are already present, the system can be integrated directly. Depending on your vehicle's equipment, additional retrofit rails may be required.

This makes the Pick-Up Between particularly suitable for anyone looking for a permanently integrated rear winch solution while still being able to use their load bed as flexibly as possible.

Your benefits at a glance

• Space-saving integration: The rear winch system fits compactly into the load bed.
• Mounted via rail system: Existing rails can be used, or matching rails can be retrofitted.

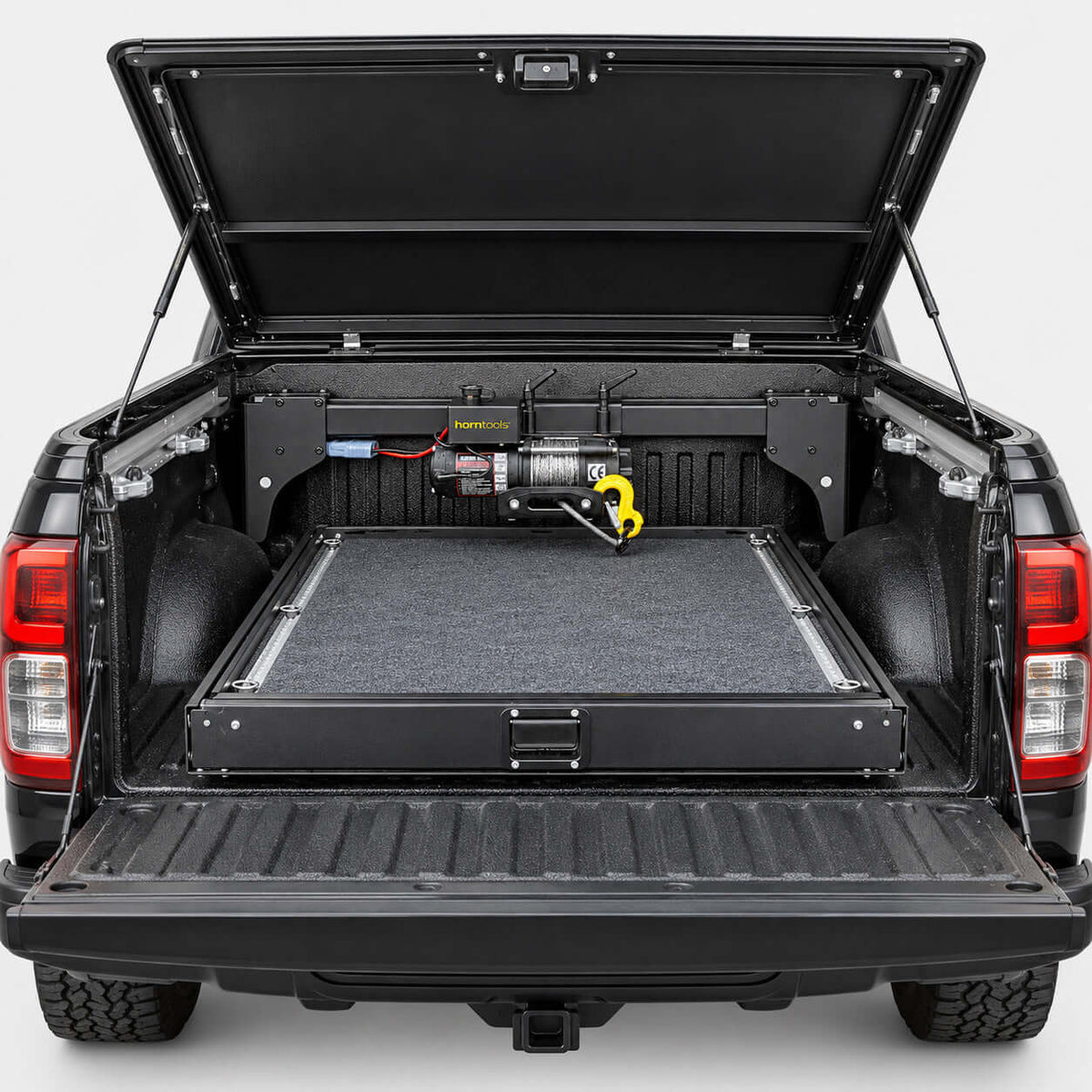

• Load bed remains flexible to use: Can also be used together with a drawer, hardtop, or loading space cover.

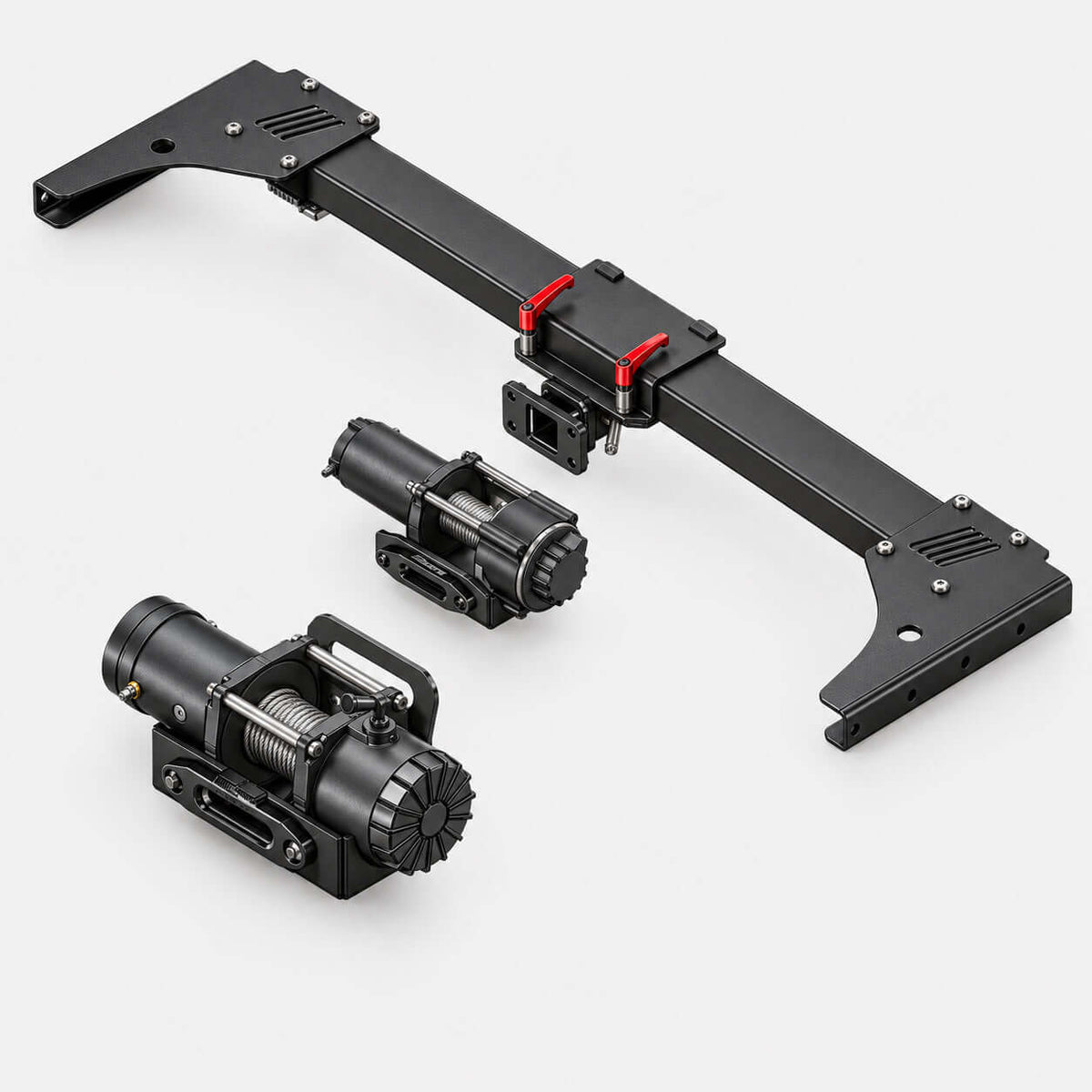

• Two variants available: Different winch variants are available depending on the application.
• Convenient operation: Includes cable and wireless remote control.
• Robust construction: Designed for demanding pulling and loading tasks.

Mounting notes

The rear winch system is not compatible with electric roll-up load bed covers.

On pickups with a load bed liner, cut-outs must be made to mount the airline rails. For easier installation, we recommend removing the load bed liner.

Features

• Motor IP67 sealed by groove with sealing ring
• Freewheel lever
• Stainless steel cross struts
• Reinforced rope drum
• Internal drum brake with 3 brake shoes
• Powder-coated die-cast aluminum housing for motor and gearbox
• Removable control unit for flexible positioning
• Reinforced, powder-coated contactor housing made of deep-drawn sheet metal

Technical data

30 m variant

Despite its compact design, the Gamma 3.5 impresses with a pulling force of up to 1.6 tons. This makes it particularly suitable for applications where a compact and reliable winch is required.

• Gearbox: 3-stage planetary gearbox
• Max. pulling force: 1,600 kg
• Max. pulling speed: 2.8 m/min*
• Winch weight: 7.9 kg
• Motor type: permanent magnet**
• Reduction ratio: 170:1
• Max. power consumption: 160 A
• Voltage: 12 V
• Rope: 5 mm × 30 m
• Drum: 37 × 80 mm
• Overall size (L × W × H): 329 × 116 × 165 mm

80 m variant

The Alpha 9.5 Quick Kompakt included in the set was specially developed for applications where only limited space is available.

A special advantage of the Quick models in the Alpha series is the high maximum pulling speed of up to 15 m/min*. This allows loads and other objects to be pulled onto the load bed particularly quickly.

• Gearbox: 3-stage planetary gearbox
• Max. pulling force: 1,400 kg
• Max. pulling speed: 15 m/min*
• Winch weight: 27 kg
• Motor type: series wound
• Reduction ratio: 110:1
• Max. power consumption: 600 A
• Voltage: 12 V
• Rope: 4 mm × 30 m
• Drum: 63 × 120 mm
• Overall size (L × W × H): 471 × 160 × 250 mm

*Measured without load.

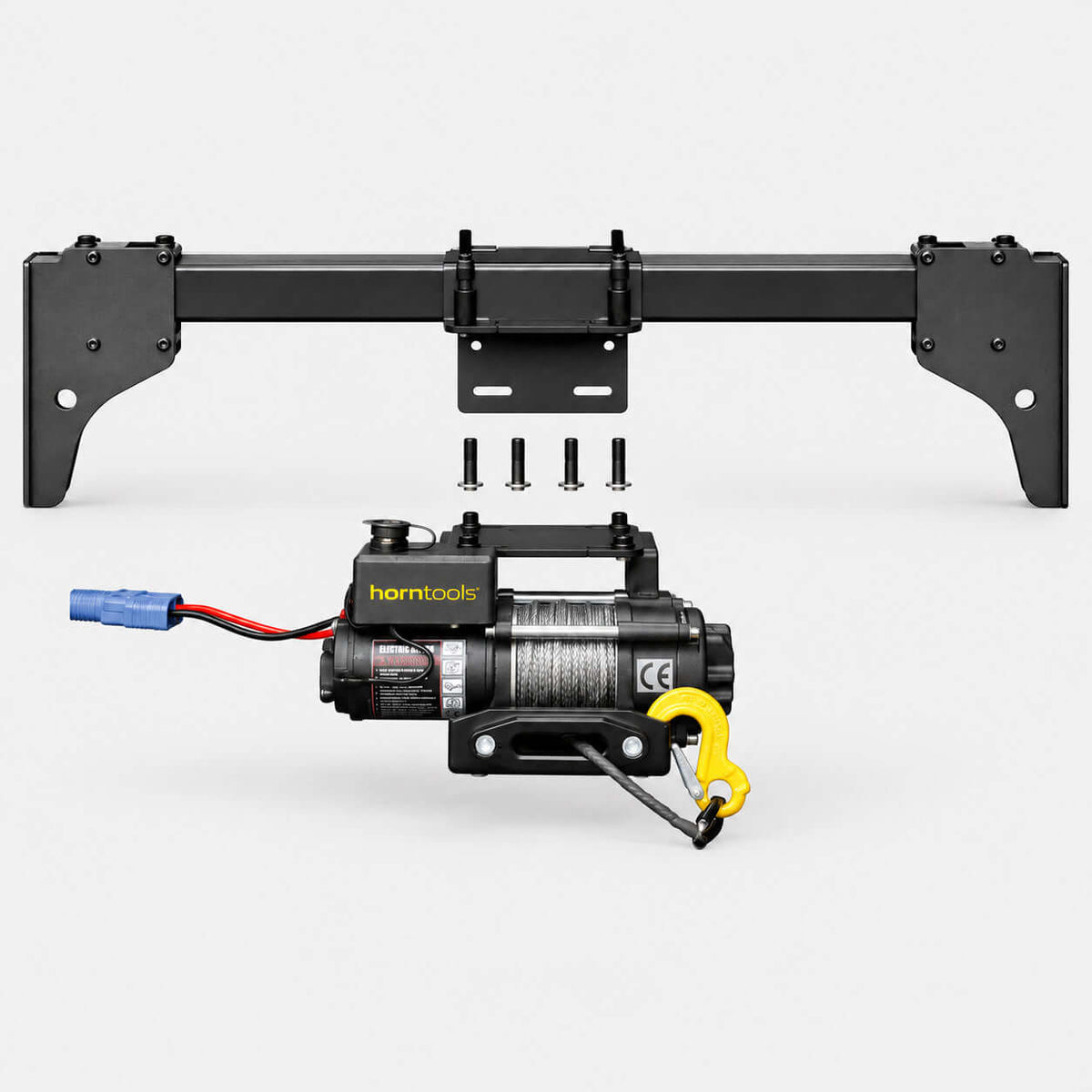

Scope of delivery

• Rear winch carrier
• Mounting plate
• Cable set
• Winch
• Aluminum cable window
• Fastening screws
• Synthetic rope with hook
• Cable remote control
• Radio remote control
• Operation manual

Caution

Our winches may only be used for ground pulling and are not suitable for lifting loads.

The winch's operating instructions must be read in full and followed before use.

The carrier was designed for a load of up to two tons and tested accordingly. The permissible load on the crossbar is limited to 300 kg, as higher loads can damage the vehicle.

Guarantee

In compliance with our guarantee and service regulations, we grant a 5-year guarantee on the gearbox and drum of the winch.

Please fill out the warranty application in the user manual and send it back to us by email. The guarantee applies exclusively to private users, not to commercial use, and only if the operating instructions are followed.

Note

You can find further information on handling your winch in the operating instructions or from your specialist dealer. This winch may produce increased noise.
