Strands NUUK D-LINE LED BAR 20″ COMPLETE KIT

10-36 V
125 W
9600 lm
IP68/69K
Sale priceCHF 299.90

Tax included. Free Shipping from CHF 300*

Only a few items left

SKU: 809455 GTIN: 7323030203160

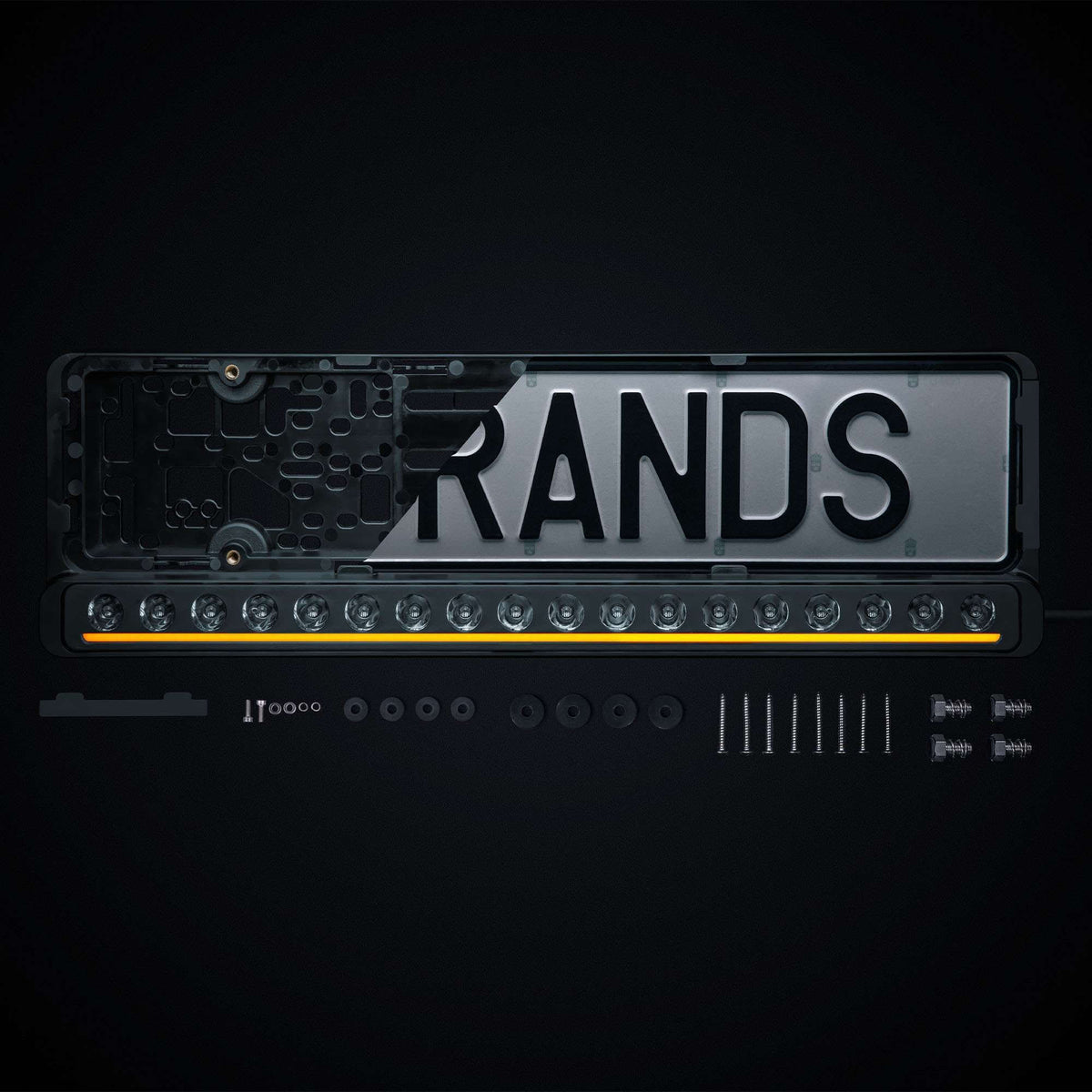

This kit includes the 20″ Nuuk D-Line LED bar (item no. 809452) together with the matching 20″ mounting bracket (item no. 809450).

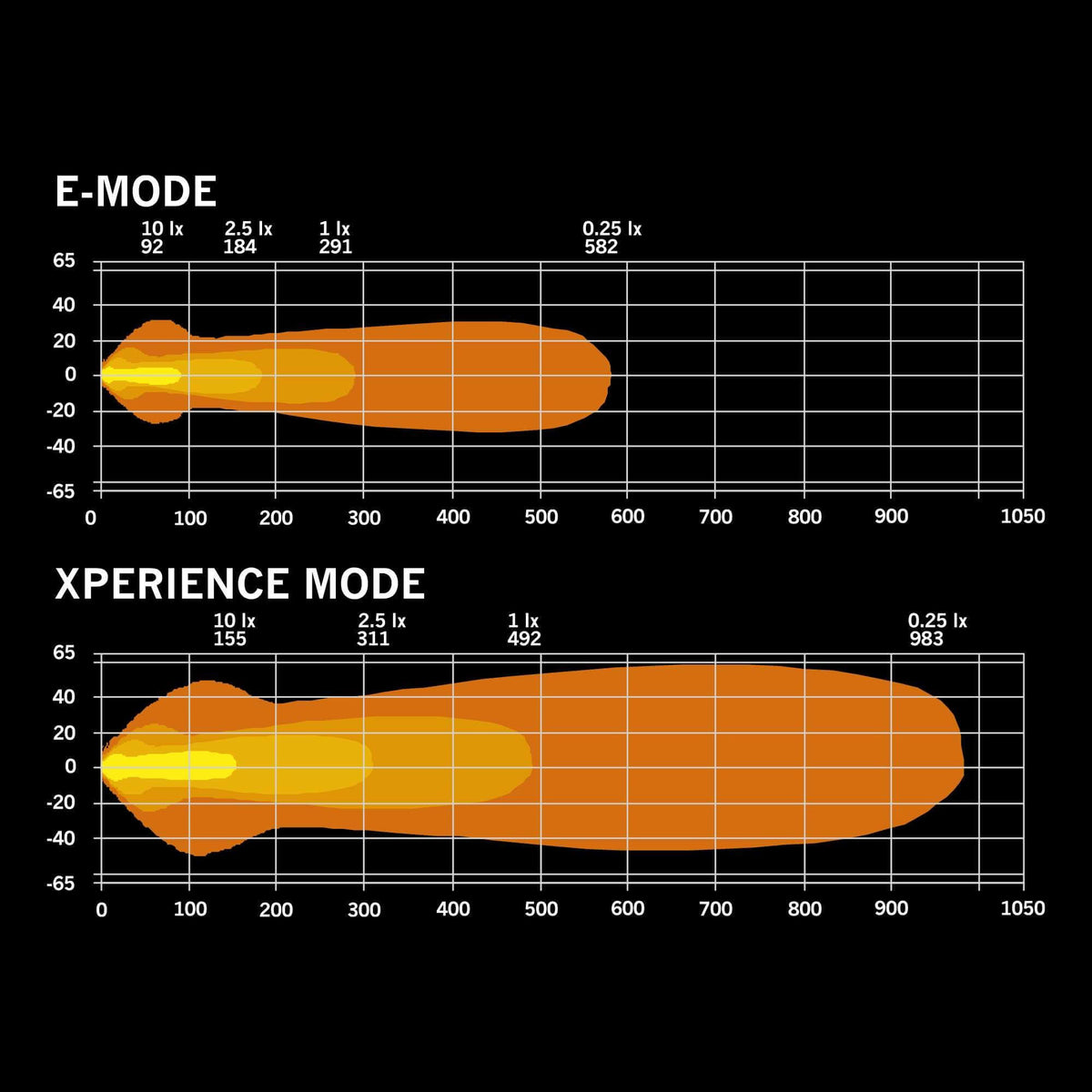

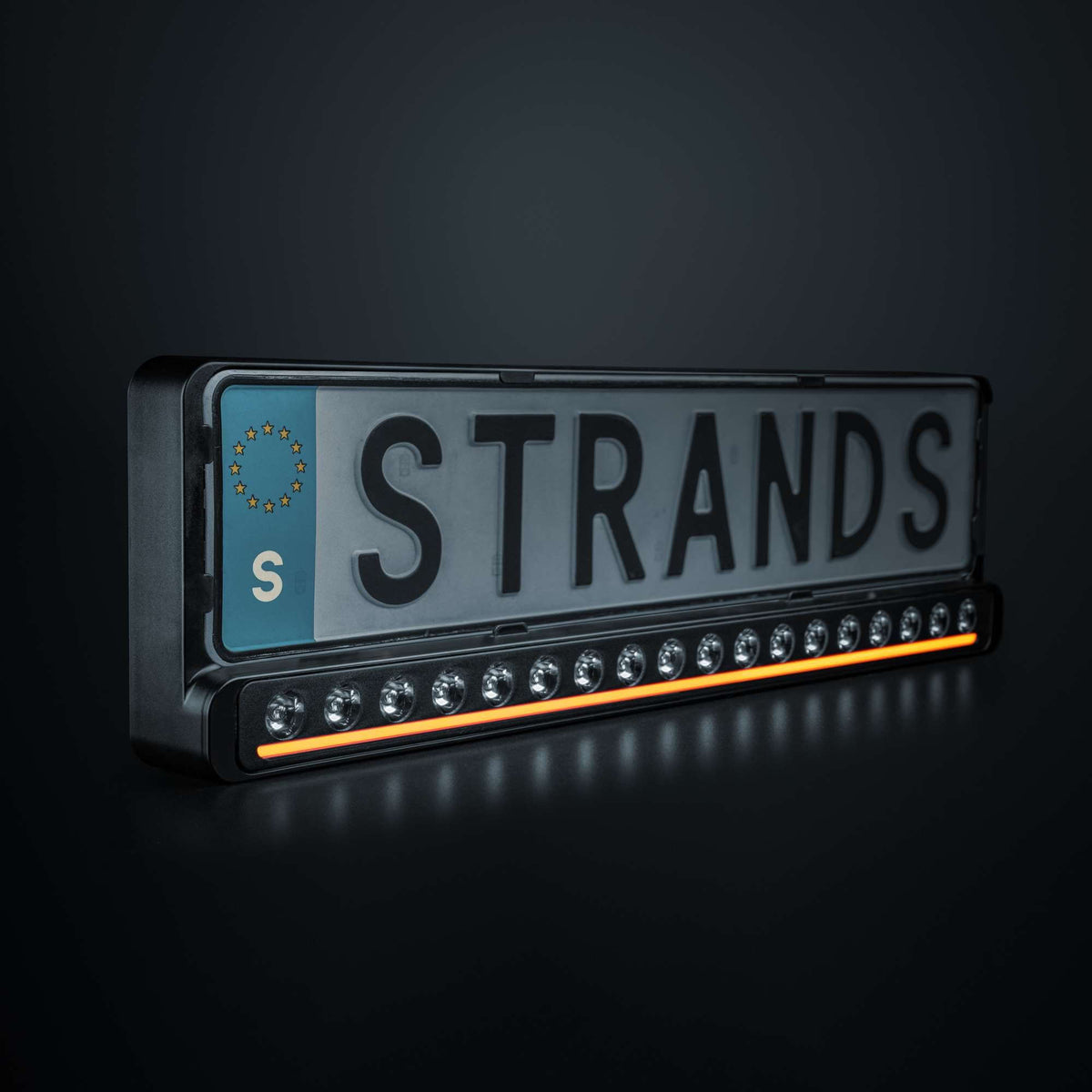

The Nuuk D-Line is an exceptionally slim and lightweight 20″ LED bar with an elegant black lens. Its optimised beam pattern delivers an impressive range of up to 492 metres in Xperience mode, with 9,600 actual lumens. Thanks to its compact design – just 3.3 cm deep and 4.5 cm high including the bracket – it blends discreetly and stylishly into the front of the vehicle.

For use on public roads, E-mode is available with E-approval to R148/R149, reference number 20. It is ideal for driving in poor weather conditions, as the reduced light output cuts down on glare and reflections from snow or water. Xperience mode, on the other hand, delivers maximum light output for very dark roads and off-road use.

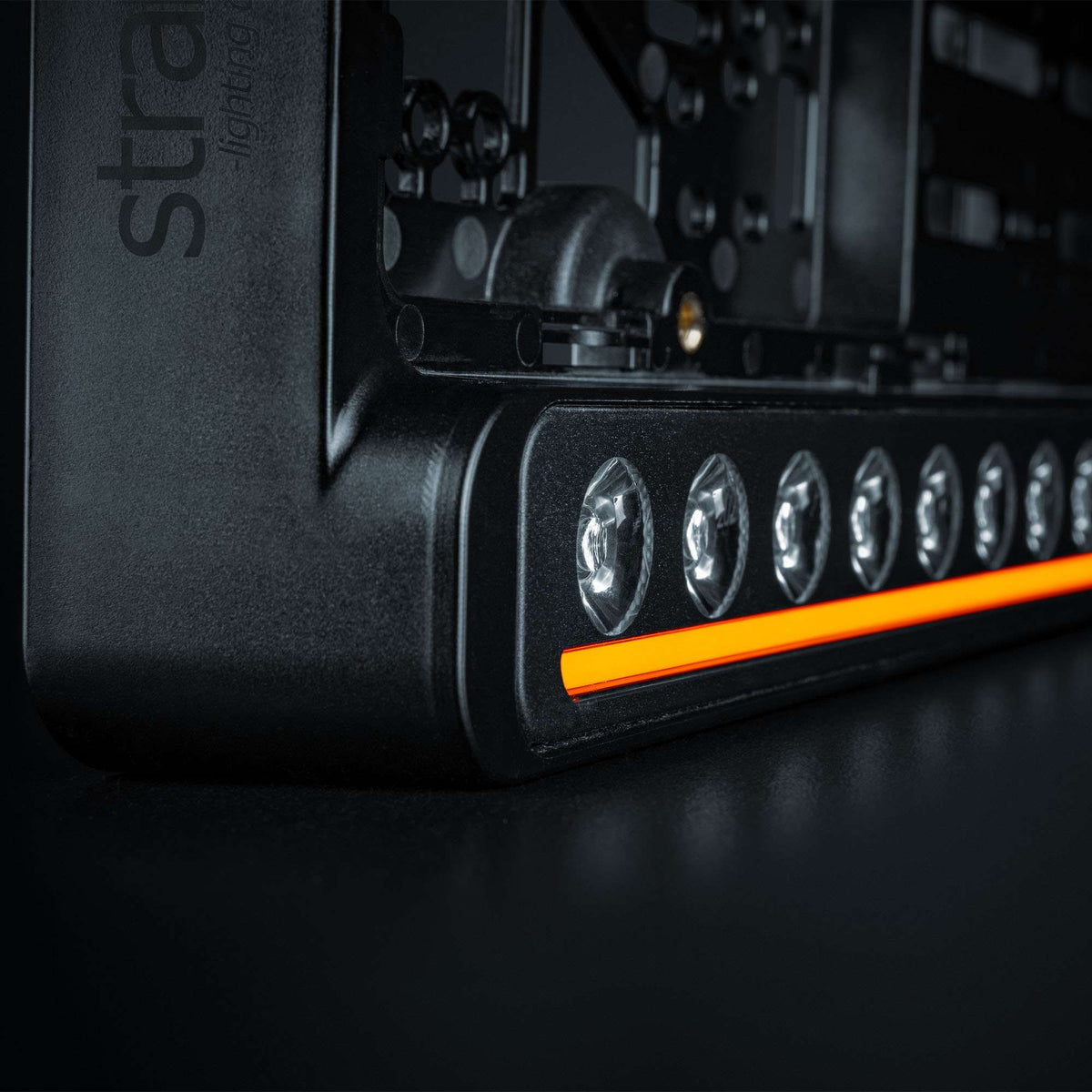

The LED bar also features a white and amber position light, letting you customise the look of your vehicle. A built-in relay makes installation easier, and the Nuuk D-Line is backed by Strands' 3-year warranty.

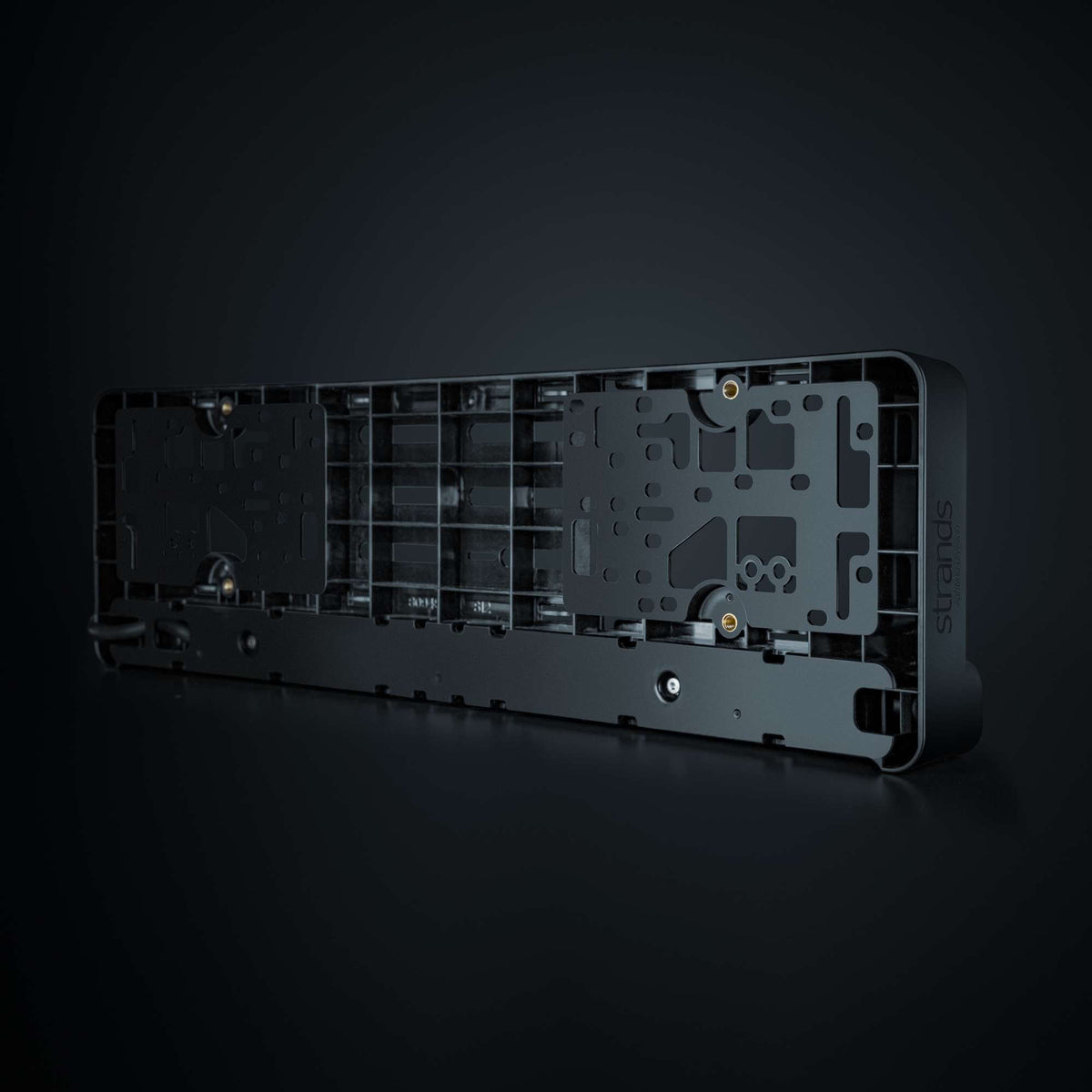

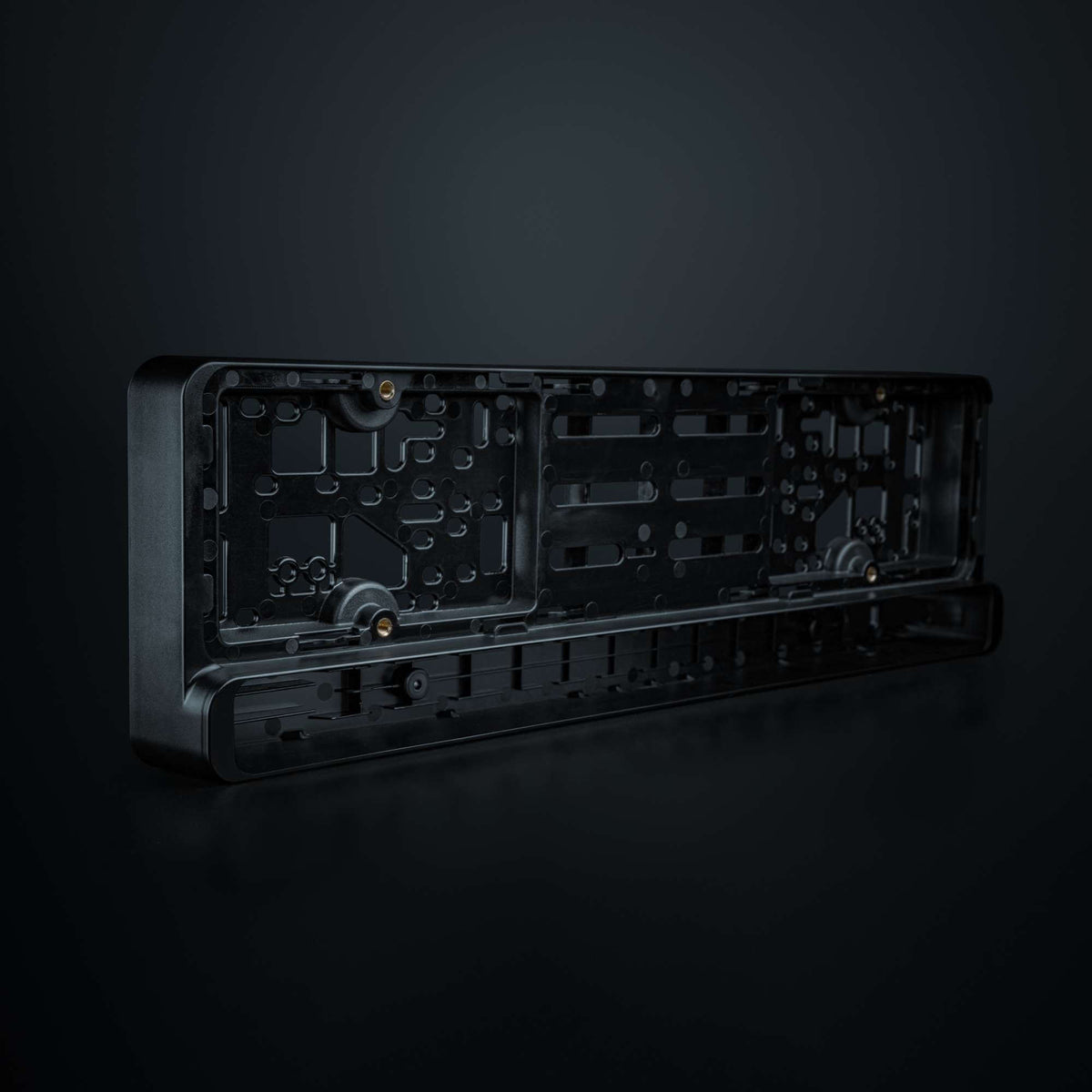

The bracket included in the set combines the LED bar mount and number plate holder in a single component, making installation especially simple: the LED bar is fitted directly to the bracket, which then replaces the existing number plate holder.

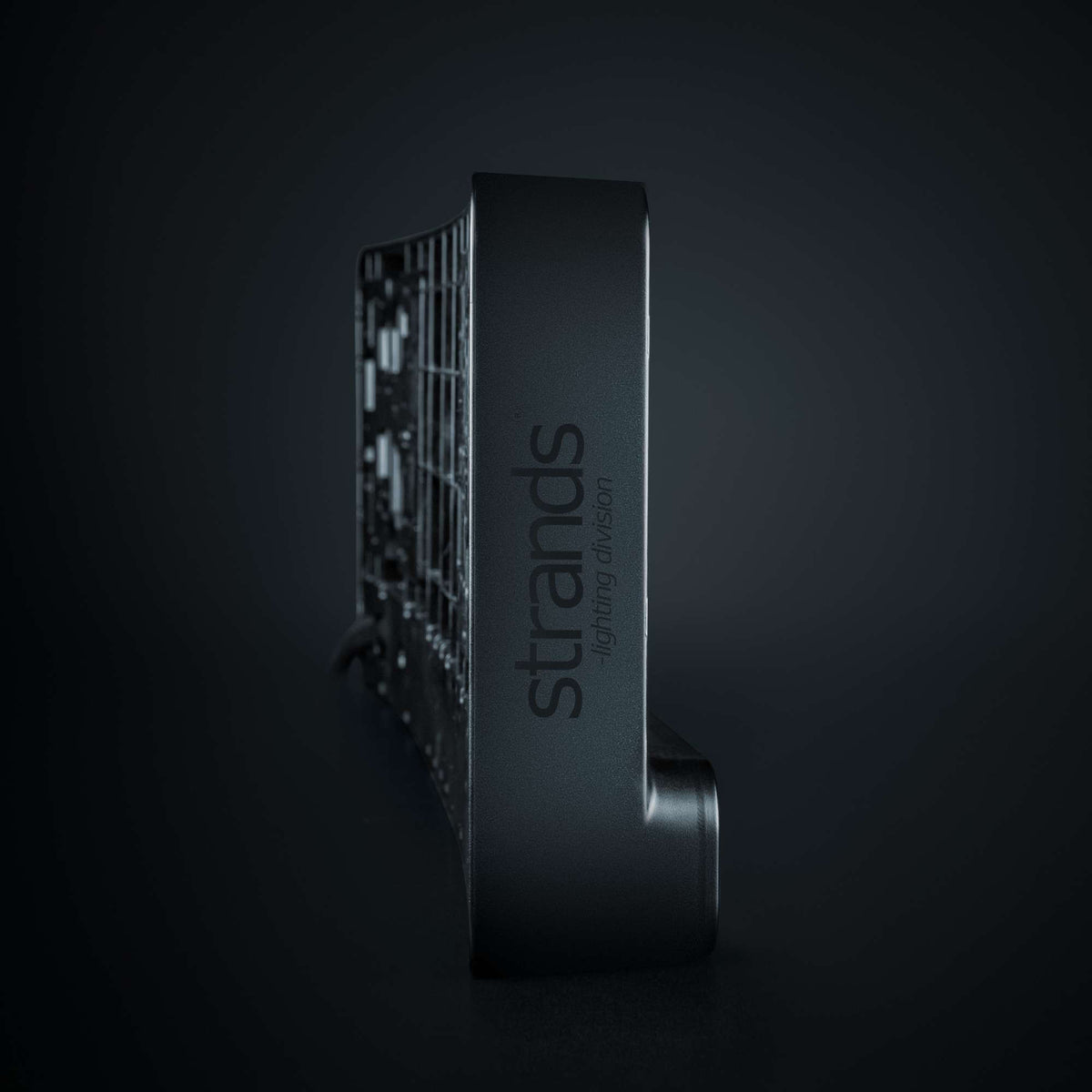

Thanks to its gently curved shape, the bracket blends harmoniously with the front of the vehicle, allowing for a clean installation without unnecessarily affecting the vehicle's look.

Unit
PACK
Voltage (DC) (V DC)
10-36
Theoretical effect (W)
130
Consumption (W)
125
Functions
High beamWhite pos.Amber pos.
Consumption specific function
X-mode 124WE-mode 32WWhite pos. 9WAmber pos. 9W
Theoretical lumen (lm)
13000
Actual lumen (lm)
9600
1 lux @ (m)
492
Color temperature (K)
5000
Beam pattern
Optimized beam
Connection
Cable
Cable length (mm)
2500
Color housing
Black
Color lens
Black
Material bracket
Plastic
Material housing/chassi
Aluminium
Material lens
Polycarbonate
Length (mm)
544
Depth (mm)
51
Height (mm)
162
Weight (kg)
1.9
IP-class
IP68/69K
Operating temperature (°C)
-40 - +60
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

Cable assignment

Black
- (Negative)
Red
+ (Positive) with fuse box
White
(+) White position light
Yellow
(+) Amber position light
Green
+ (on/off signal line for high beam)
